Frente Forjado
Solution for thermal bridges
Grafipol Frente Forjado is a black rigid expanded polystyrene (EPS) foam with low thermal insulation, whose raw material particularly increases thermal insulation to equal the density of conventional EPS.
Its excellent thermal characteristics and specific design make it specially recommended to insulate reinforced beams of reinforced concrete structures and intermediate insulation, thereby removing thermal bridges in the façade of the slab edge.
Available for two possible uses, based on the insulation coating:
- To apply cover with mortar and reinforcement mesh.
- To coat with ceramic gravel, ensuring continuity with the brick wall.
- To be covered with a face-facing brick plaque, leaving a heel on top to resolve the support of the façade brick.

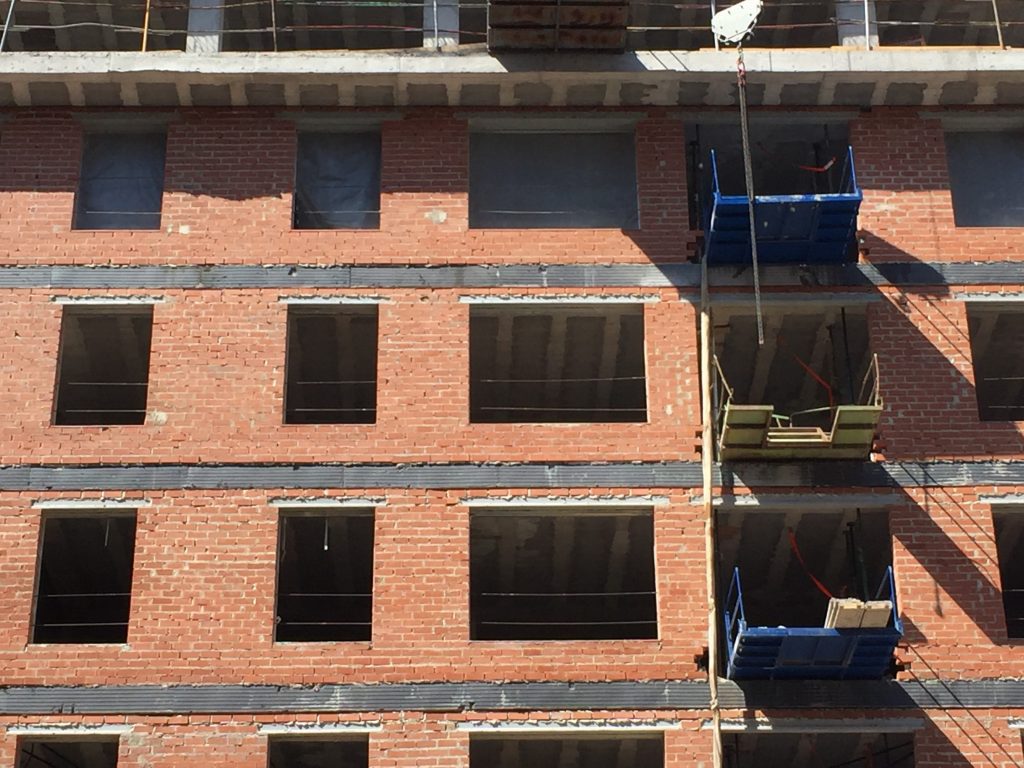

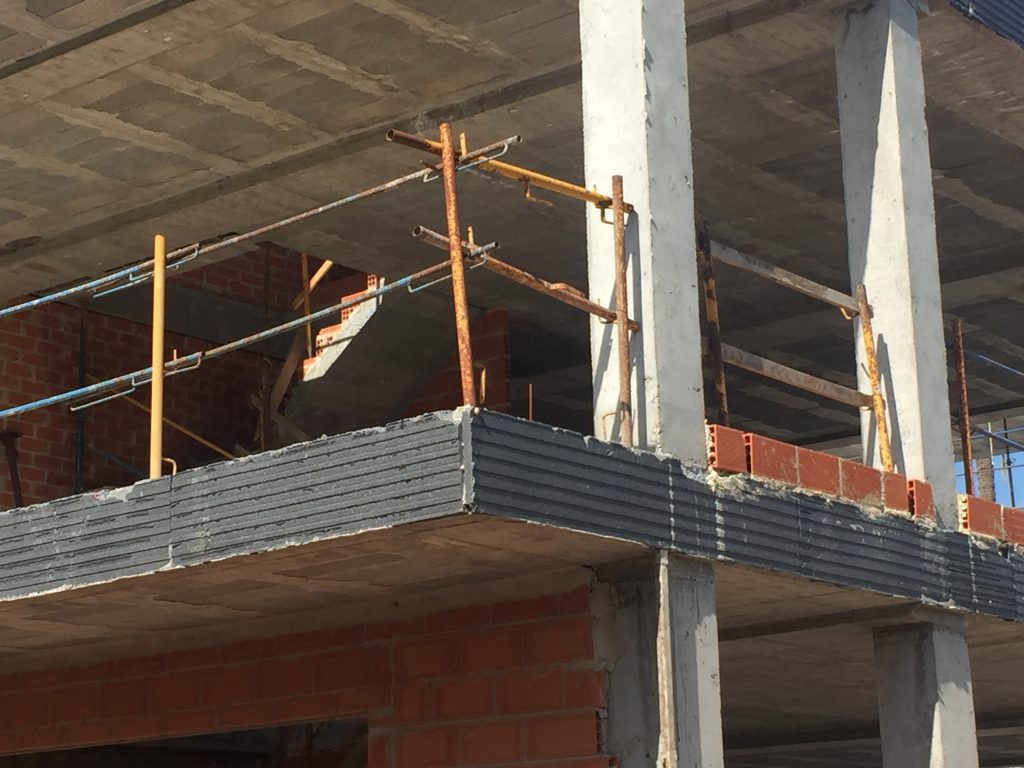

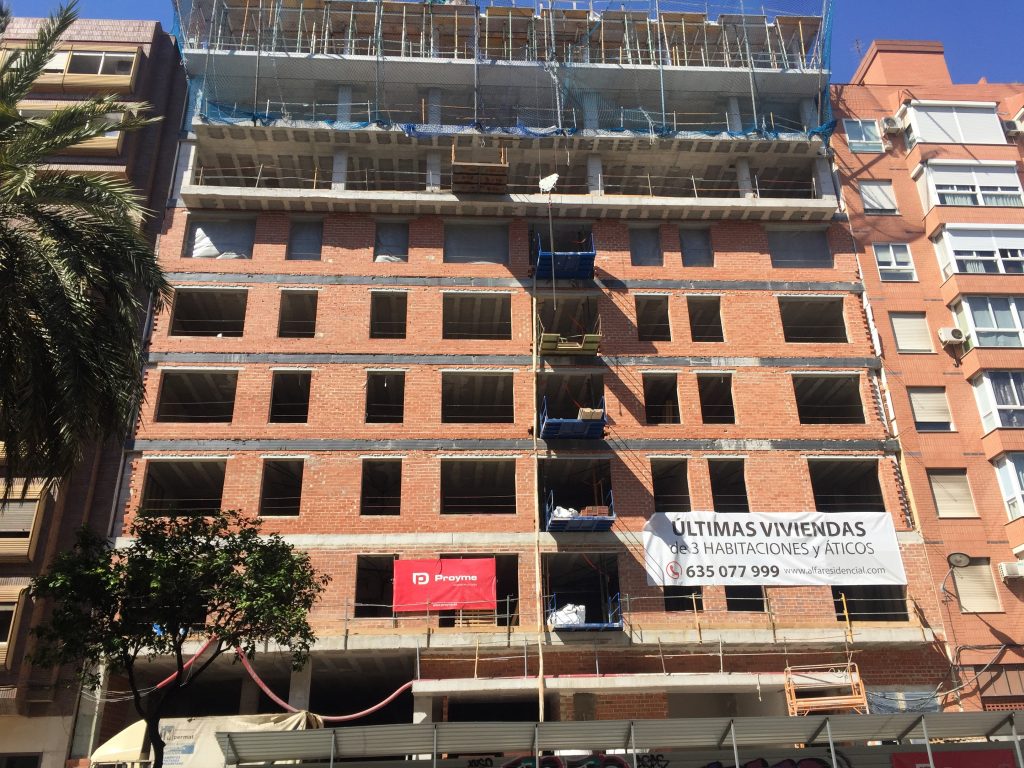

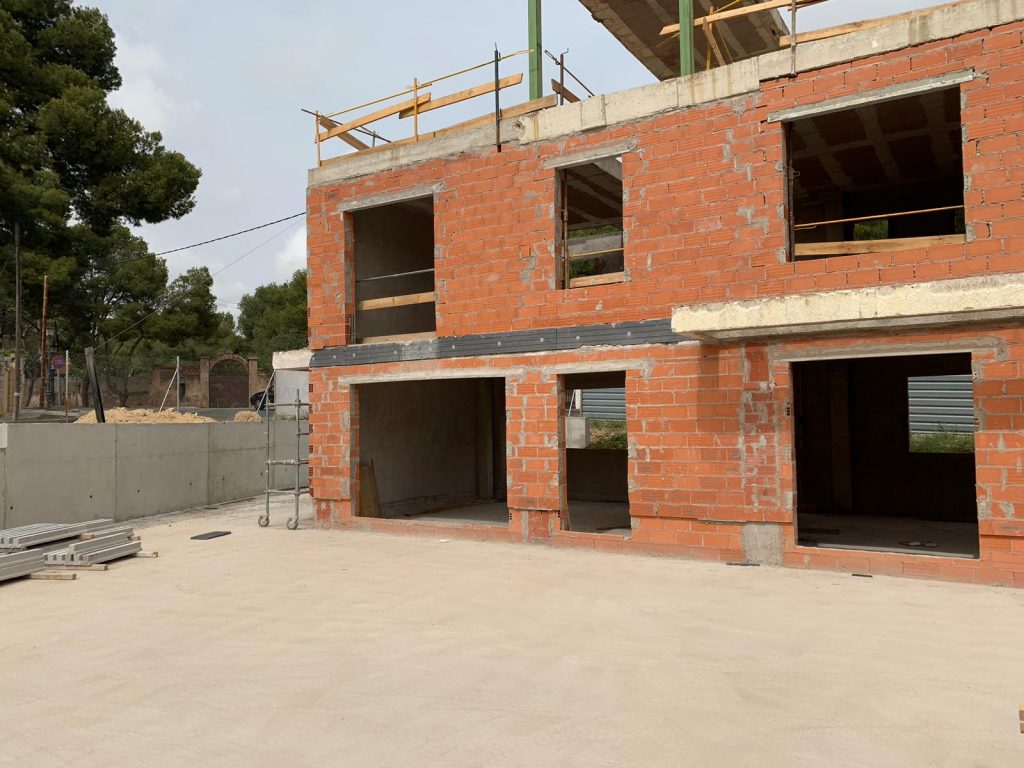

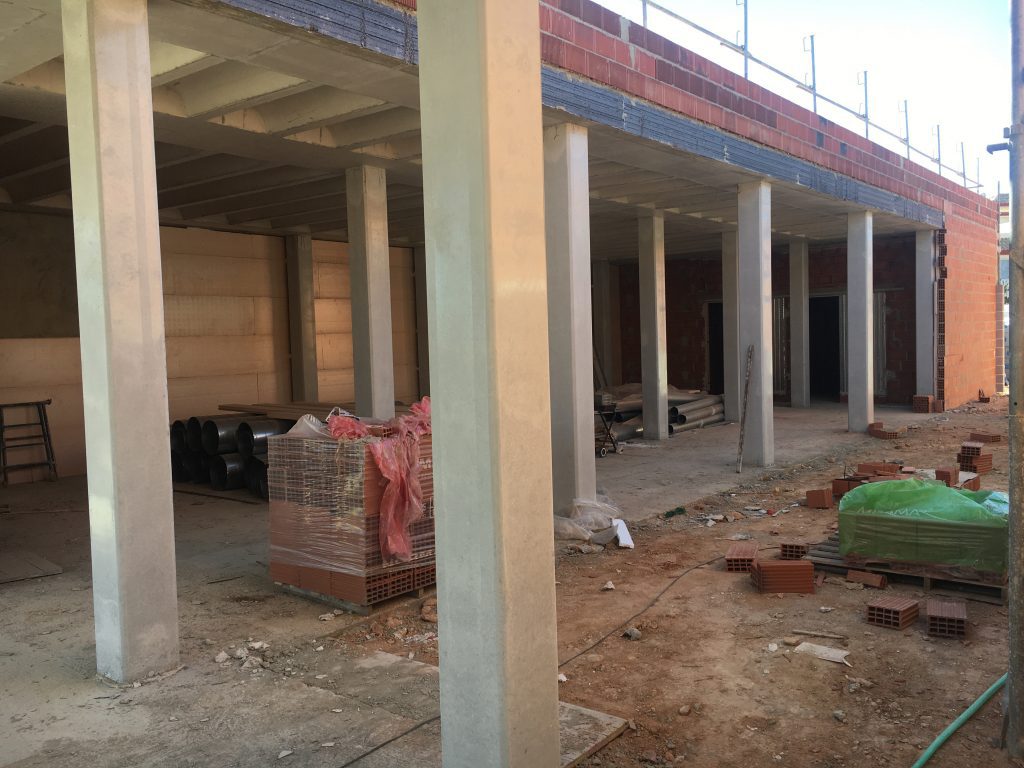

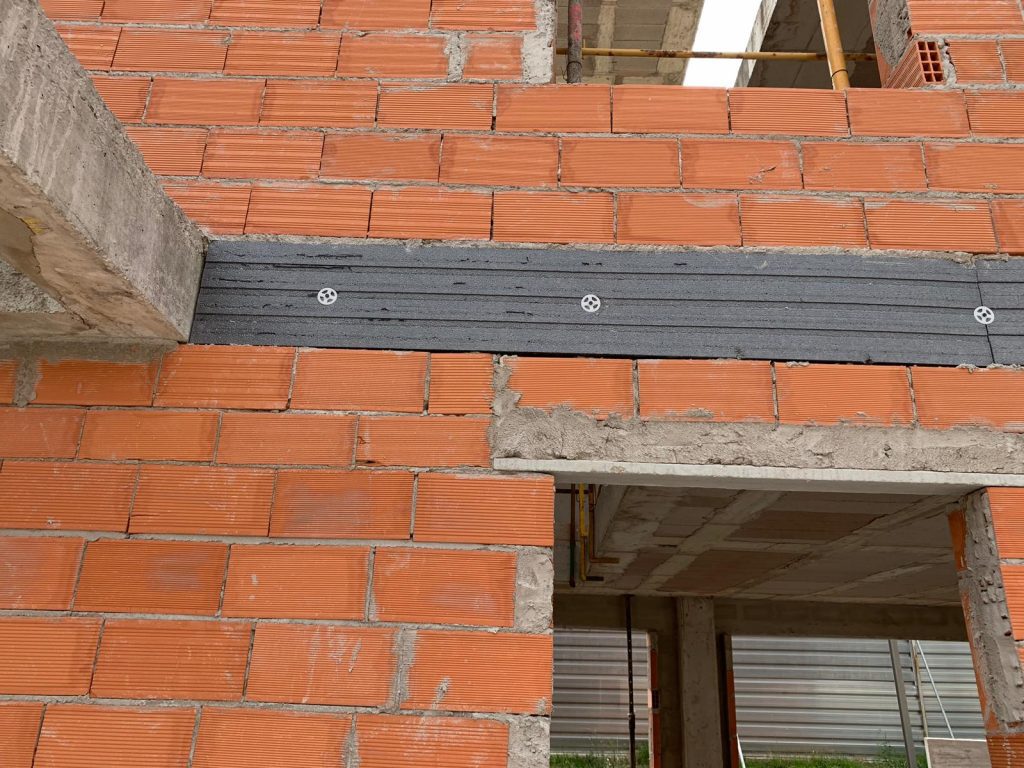

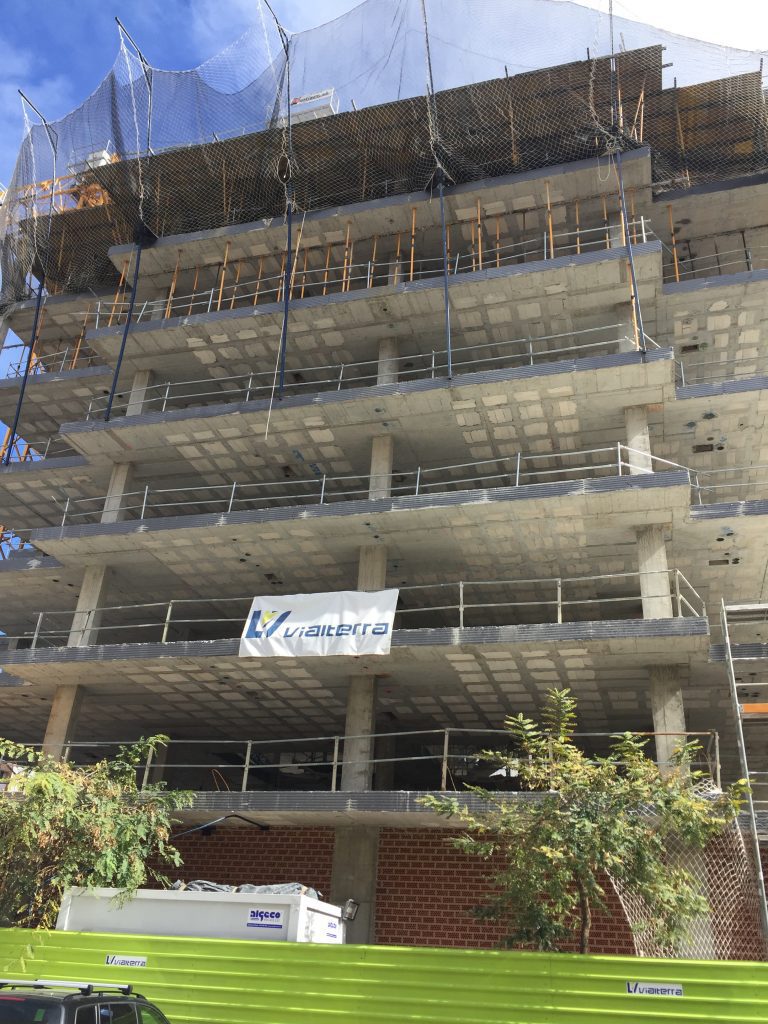

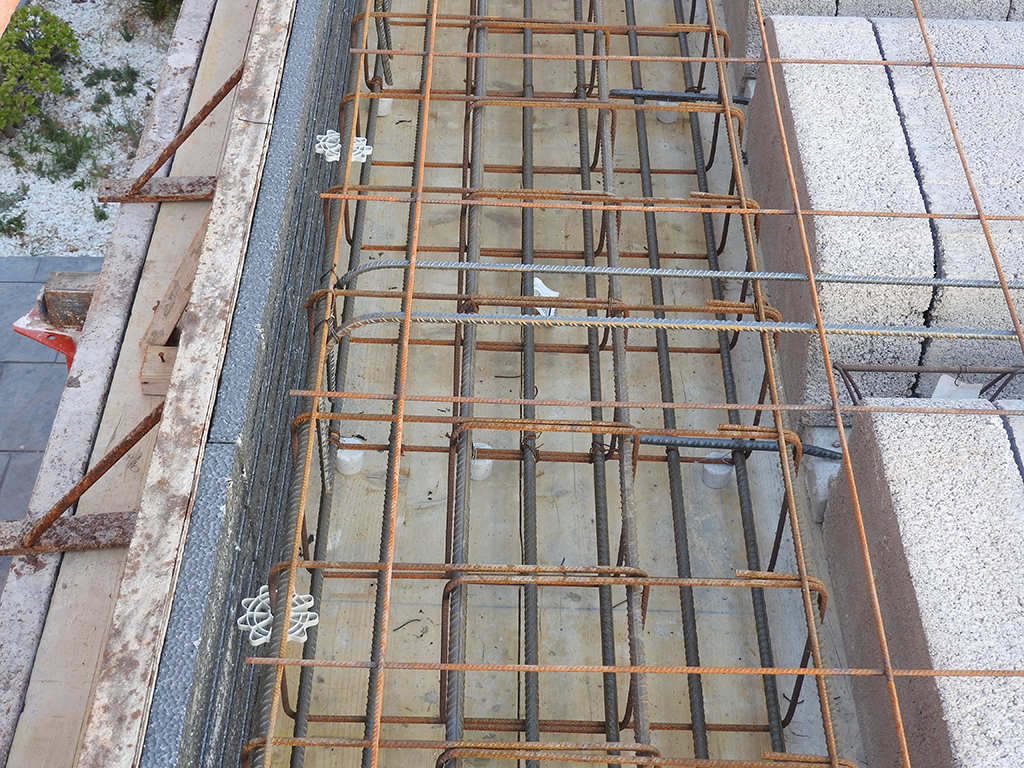

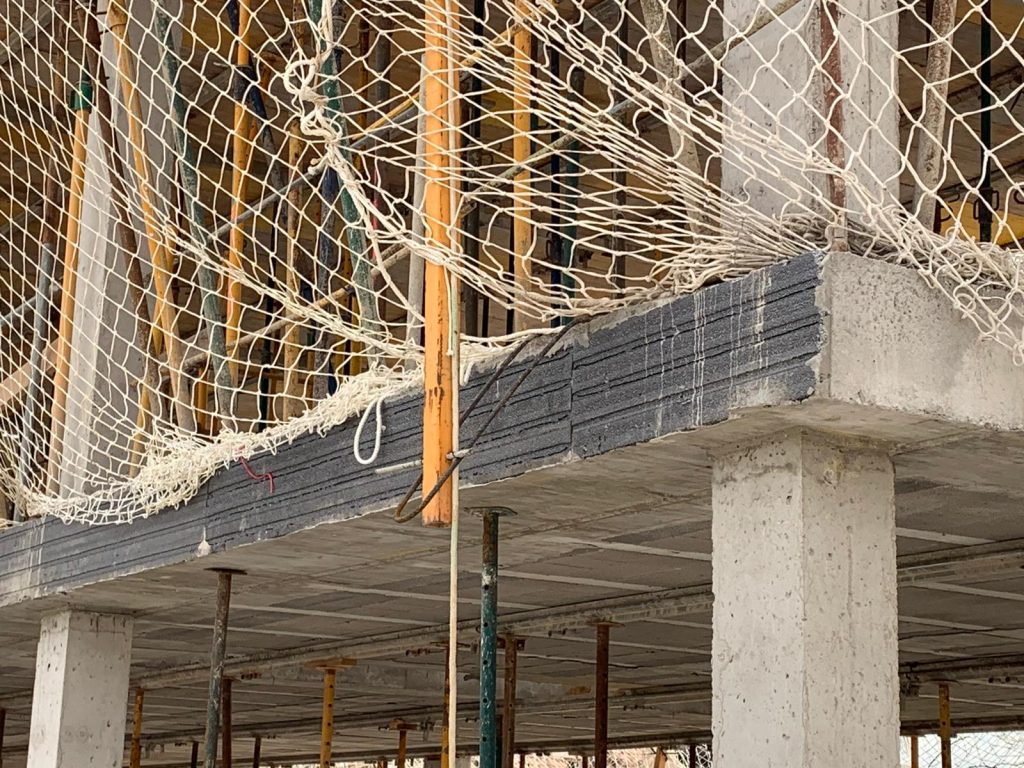

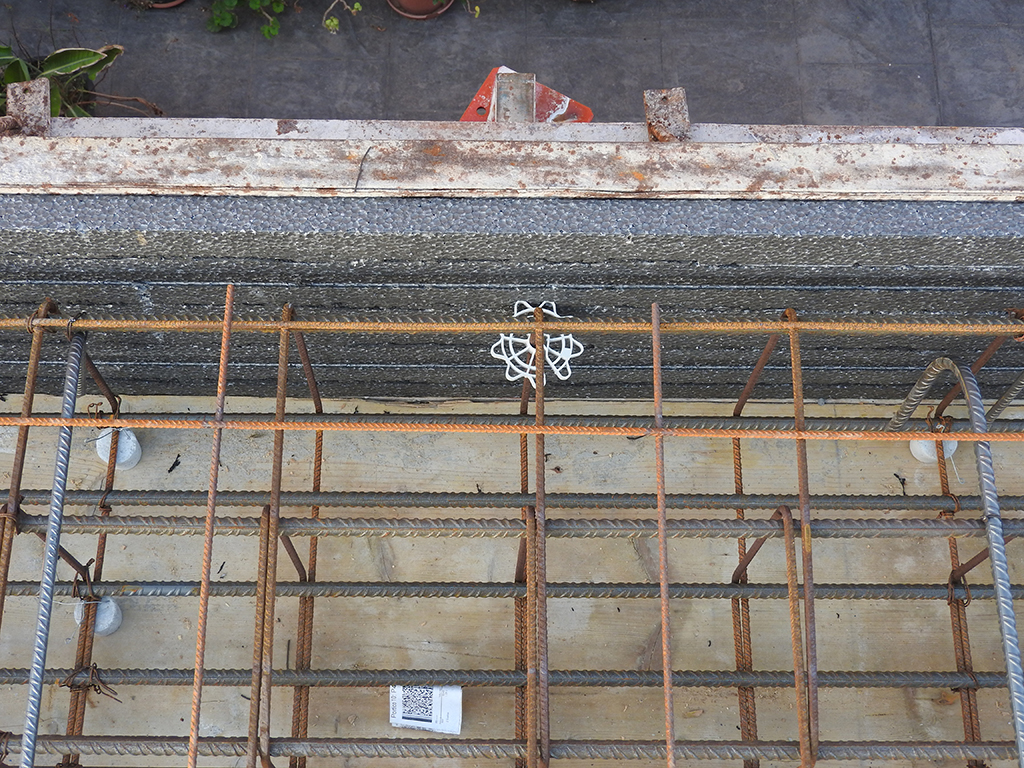

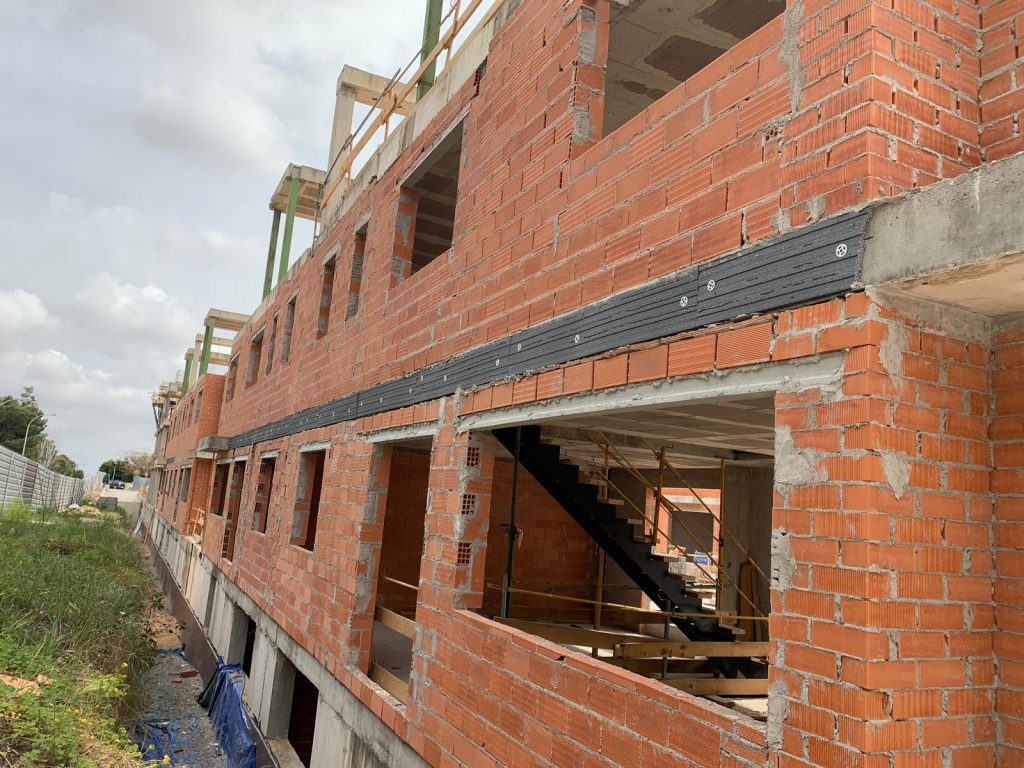

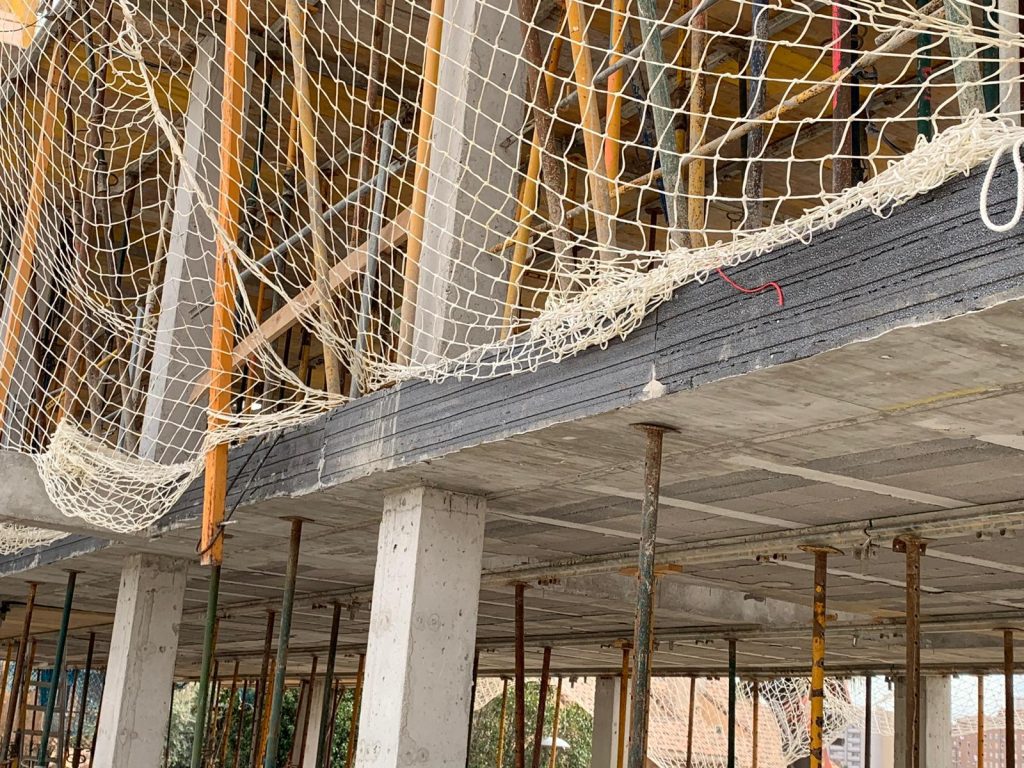

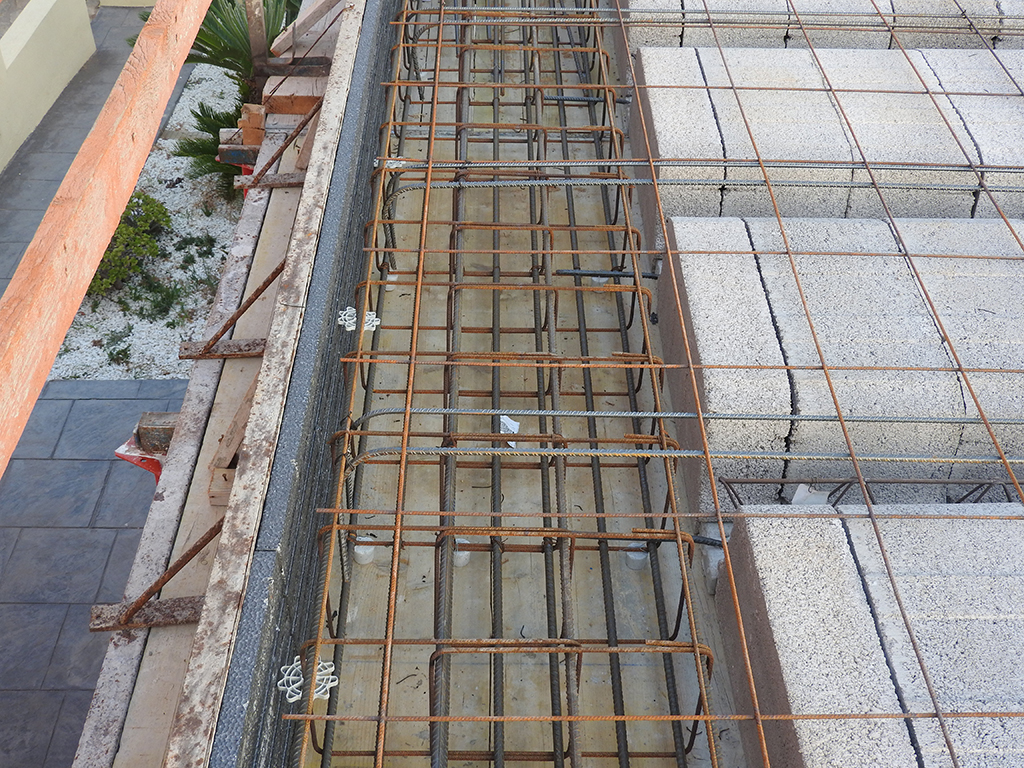

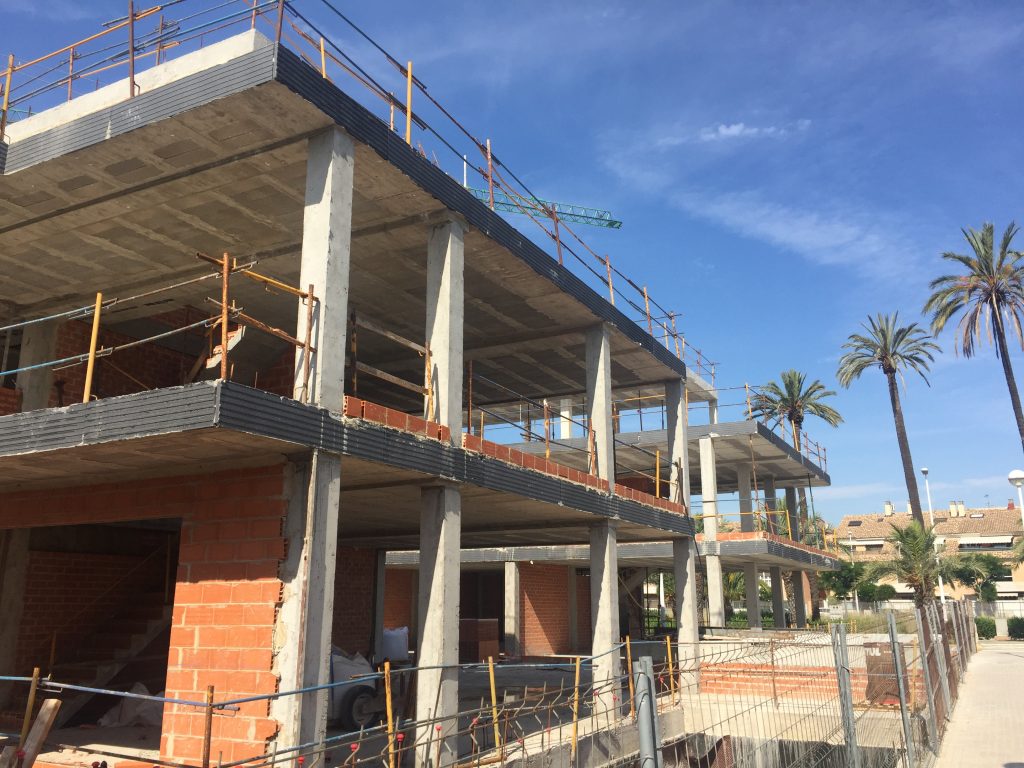

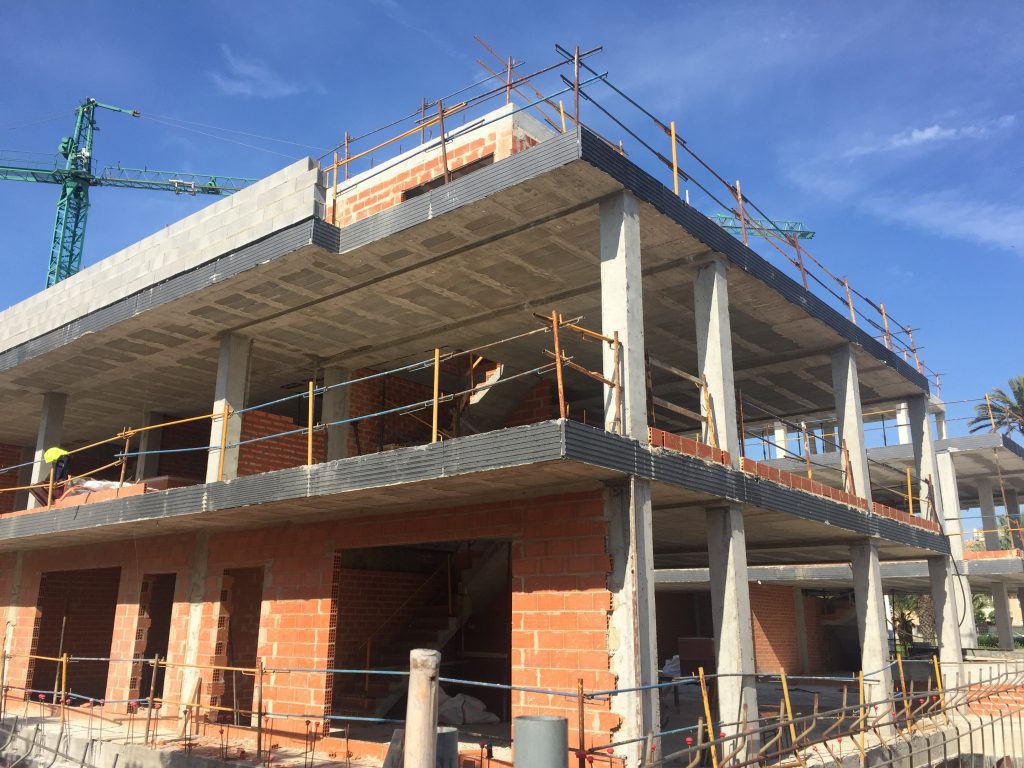

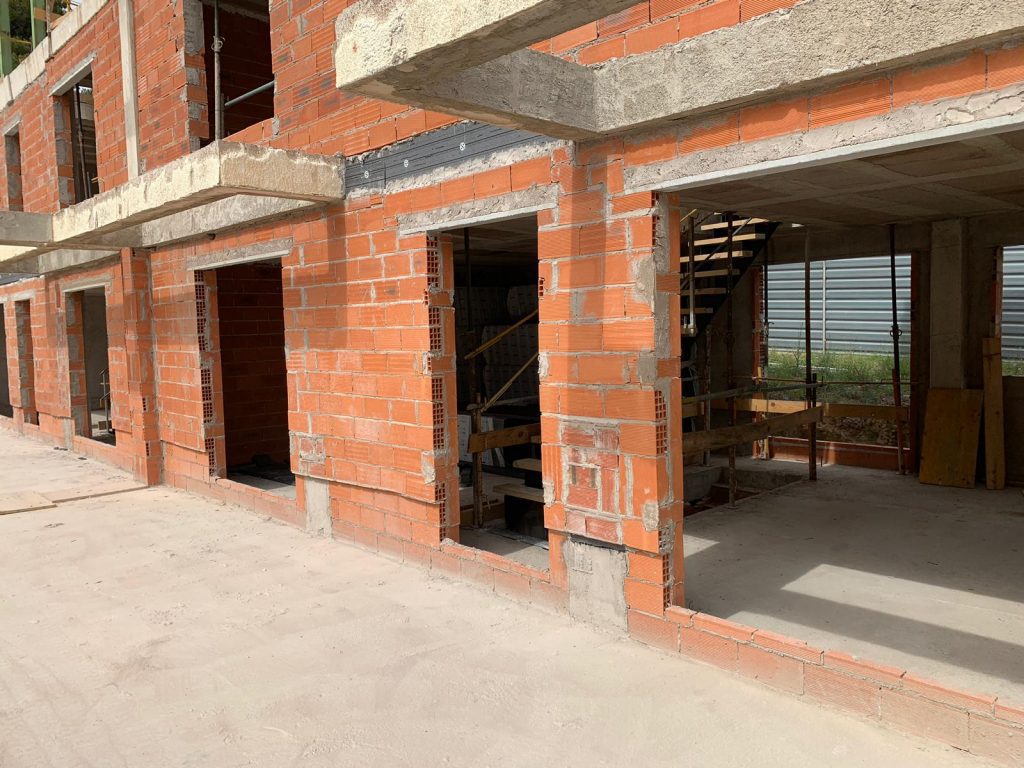

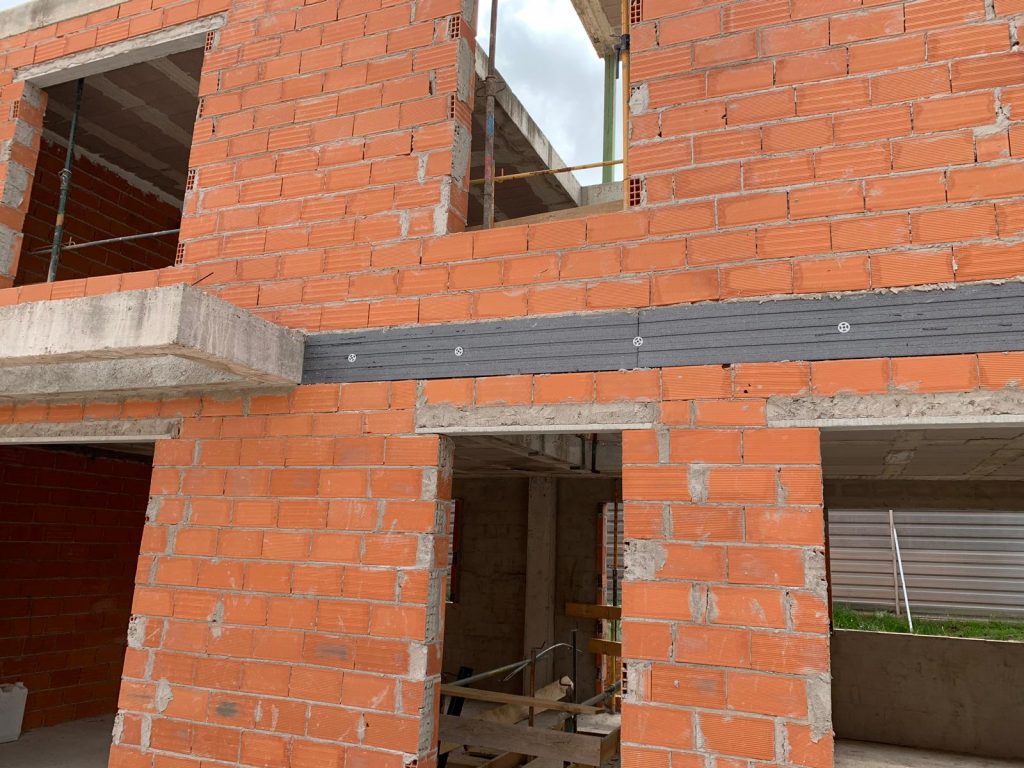

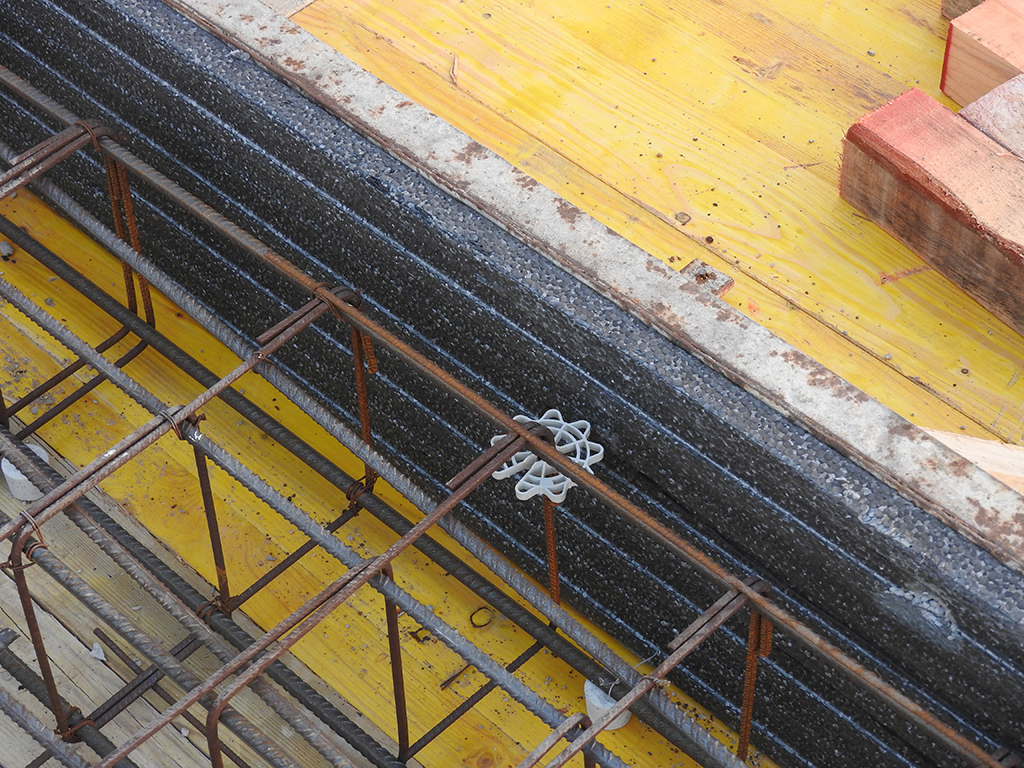

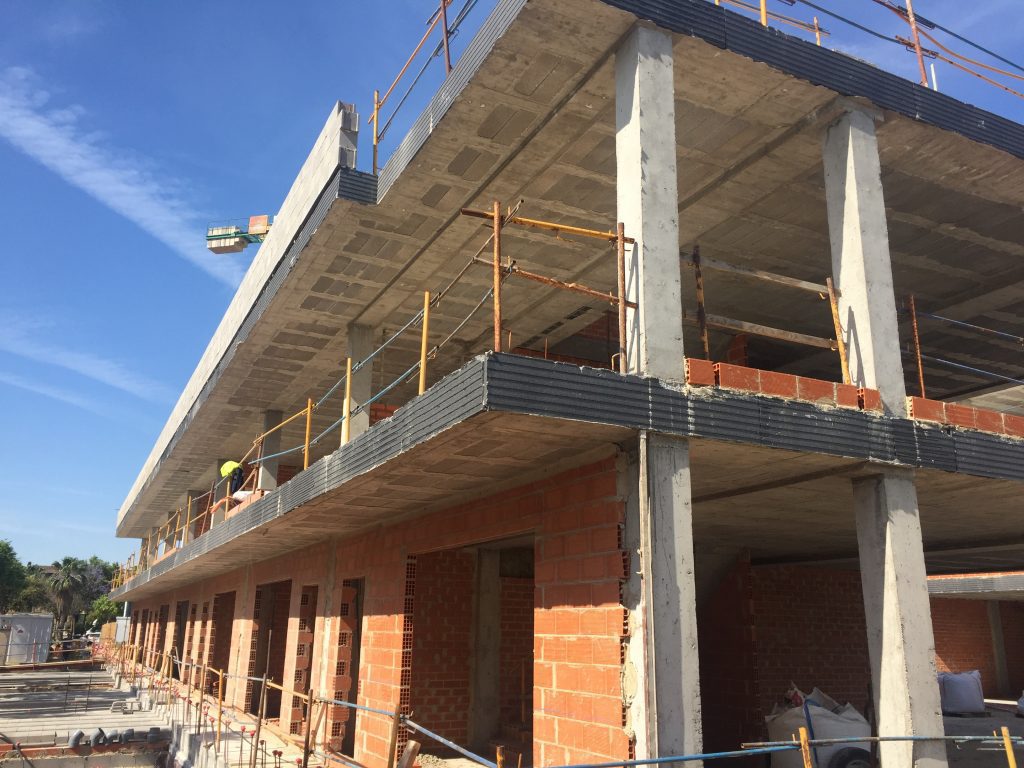

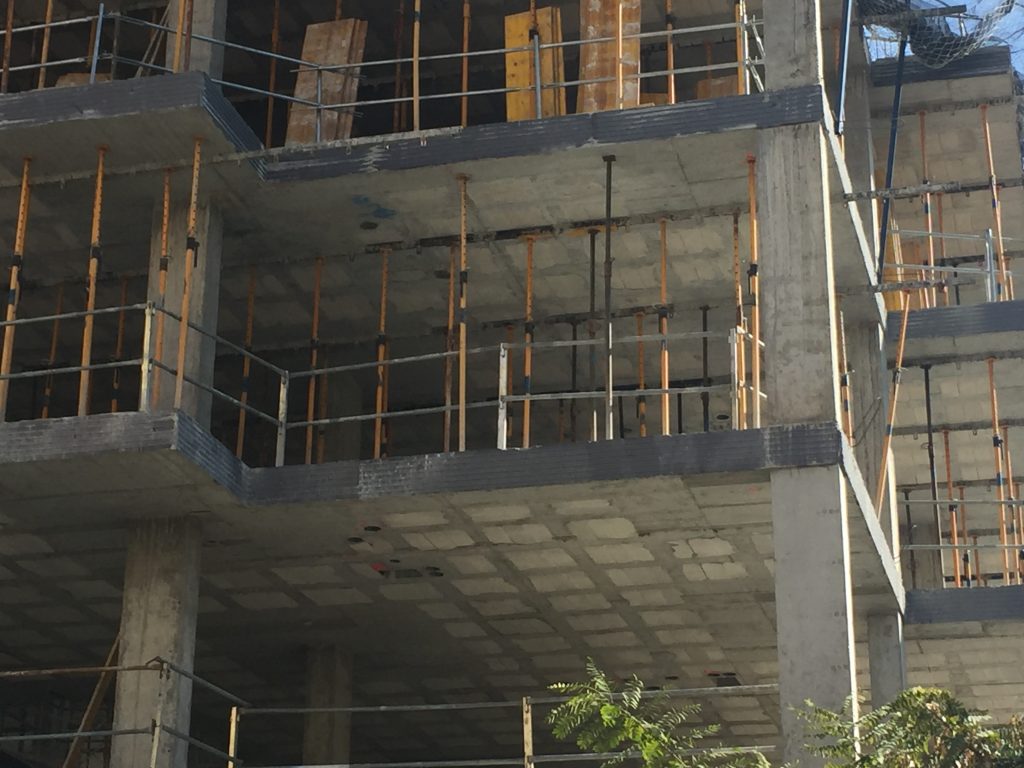

It may be placed before the concrete, fixing the formwork (riser) or mechanically fixing the slab edge once the formwork of the structure has been removed.
Construction details
Option 1
Application on slab edge with direct mortar cover over the insulation.

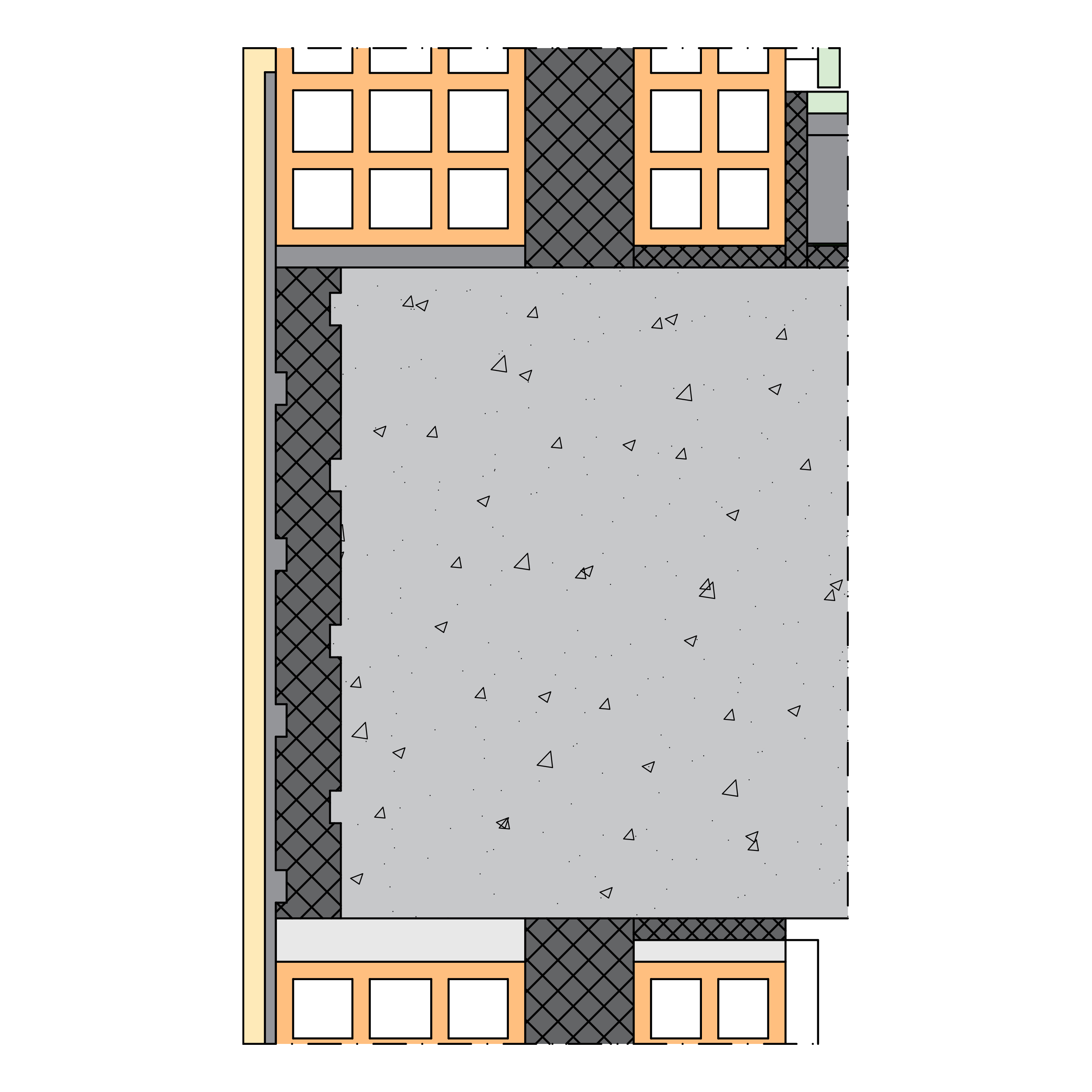

SECTION
3D DETAIL
LEGEND
- Façade sealing
- Joint between the insulation and the exterior coating: concrete adhesive reinforced with fibreglass mesh
- Thermal insulation: GRAFIPOL FRENTE DE FORJADO (λ = 0,032 W/mK, mechanical surface, e=30mm) placed before the concrete, fixed to formwork riser, embedded to the façade’s thickness
- Reinforced concrete slab edge
- Continuous exterior coating: monolayer mortar
Thermal Bridge Analysis
ISOTHERMS
FLUX VECTORS
* Analysis performed with THERM Versión 7.7.07
Linear Thermal Transmissions Calculation
| External and indoor linear thermal transmissions (W/mK) (1) | ||||||
| “U” thermal transmittance of facades (W/m2K) |
Depth of forged 250 mm | Depth of forged 300 mm | Depth of forged 350 mm | |||
|---|---|---|---|---|---|---|
| Ψe | Ψi | Ψe | Ψi | Ψe | Ψi | |
| 0,52 | 0,24 | 0,41 | 0,24 | 0,44 | 0,24 | 0,47 |
| 0,45 | 0,25 | 0,40 | 0,26 | 0,44 | 0,27 | 0,46 |
| 0,35 | 0,28 | 0,40 | 0,30 | 0,43 | 0,31 | 0,46 |
| 0,29 | 0,29 | 0,39 | 0,31 | 0,42 | 0,32 | 0,45 |
| 0,26 | 0,31 | 0,39 | 0,33 | 0,43 | 0,34 | 0,46 |
| 0,23 | 0,29 | 0,37 | 0,31 | 0,40 | 0,33 | 0,43 |
(1) Calculation made with the THERM software version 7.7.07, with the Spanish document “Documento de Apoyo al Documento Básico DB-HE Ahorro de Energía; DA DB-HE / 3: Puentes Térmicos” for insulation of e=30 mm and λ=0,032 W/mK. For other thickness or thermal conductivities, consult our Prontuario or ask to our technical department.
Option 2
Application on slab edge with ceramic gravel before the insulation.
SECTION
3D DETAIL
LEGEND
- Façade sealing
- Ceramic gravel
- Thermal insulation: GRAFIPOL FRENTE DE FORJADO (λ = 0,032 W/mK, smooth surface, e=20mm)
- Reinforced concrete slab edge
- Continuous exterior coating: monolayer mortar
Thermal Bridge Analysis
ISOTHERMS
FLUX VECTORS
* Analysis performed with THERM Versión 7.7.07
Linear Thermal Transmissions Calculation
| External and indoor linear thermal transmissions (W/mK) | ||||||
| “U” thermal transmittance of facades (W/m2K) |
Depth of forged 250 mm | Depth of forged 300 mm | Depth of forged 350 mm | |||
|---|---|---|---|---|---|---|
| Ψe | Ψi | Ψe | Ψi | Ψe | Ψi | |
| 0,52 | 0,25 | 0,43 | 0,26 | 0,46 | 0,27 | 0,50 |
| 0,45 | 0,27 | 0,42 | 0,28 | 0,45 | 0,29 | 0,49 |
| 0,35 | 0,29 | 0,41 | 0,31 | 0,45 | 0,31 | 0,46 |
| 0,29 | 0,29 | 0,39 | 0,32 | 0,43 | 0,34 | 0,47 |
| 0,26 | 0,31 | 0,40 | 0,34 | 0,44 | 0,36 | 0,48 |
| 0,23 | 0,30 | 0,37 | 0,32 | 0,41 | 0,35 | 0,45 |
(1) Calculation made with the THERM software version 7.7.07, with the Spanish document “Documento de Apoyo al Documento Básico DB-HE Ahorro de Energía; DA DB-HE / 3: Puentes Térmicos” for insulation of e=30 mm and λ=0,032 W/mK. For other thickness or thermal conductivities, consult our Prontuario or ask to our technical department.
Option 3
Application on s lab edge for face-facing brick façade.
SECTION
3D DETAIL
LEGEND
- Façade sealing
- Forged concrete with heel on top to solve the brick support
- Thermal insulation: GRAFIPOL FRENTE DE FORJADO (λ = 0,032 W/mK, smooth surface, e=30mm)
- Exposed-face brick plateau for forged forks
Thermal Bridge Analysis
ISOTHERMS
FLUX VECTORS
* Analysis performed with THERM Versión 7.7.07
Linear Thermal Transmissions Calculation
| External and indoor linear thermal transmissions (W/mK) | ||||||
| “U” thermal transmittance of facades (W/m2K) |
Depth of forged 250 mm | Depth of forged 300 mm | Depth of forged 350 mm | |||
|---|---|---|---|---|---|---|
| Ψe | Ψi | Ψe | Ψi | Ψe | Ψi | |
| 0,54 | 0,28 | 0,46 | 0,29 | 0,50 | 0,29 | 0,52 |
| 0,46 | 0,31 | 0,46 | 0,32 | 0,50 | 0,32 | 0,52 |
| 0,36 | 0,33 | 0,45 | 0,34 | 0,48 | 0,35 | 0,51 |
| 0,29 | 0,35 | 0,44 | 0,37 | 0,48 | 0,38 | 0,51 |
| 0,27 | 0,34 | 0,43 | 0,36 | 0,46 | 0,37 | 0,49 |
| 0,23 | 0,34 | 0,42 | 0,36 | 0,45 | 0,38 | 0,48 |
(1) Calculation made with the THERM software version 7.7.07, with the Spanish document “Documento de Apoyo al Documento Básico DB-HE Ahorro de Energía; DA DB-HE / 3: Puentes Térmicos” for insulation of e=30 mm and λ=0,032 W/mK. For other thickness or thermal conductivities, consult our Prontuario or ask to our technical department.
DESCRIPTIVE REPORT
___m.l. of rigid expanded polystyrene (EPS) foam panel, VALERO Grafipol Frente Forjado , in accordance with UNE-EN 13163, _________ surface, thickness of ___ mm, __________ edge, straight mechanised side, thermal resistance ___ m²K/W, thermal conductivity of 0.032 W/(mK), Euroclass E reaction to fire.
ENTER TO OUR ONLINE CATALOGUE WITH
150 CONSTRUCTION ELEMENTS AND MORE THAN 2.800 COMBINATIONS
FOR DIFFERENT TYPES OF INSULATION AND CLIMATE AREAS
– With calculated thickness for each climatic zone in accordance with annex E of DB-HE (Dec. 2019)
– Includes U thermal transmittance values for each solution, calculated with HULC
– Documentation available to download (.PDF, .DWG, .BDC, .BIB)
Verification of the efficiency of the construction solution
Thermographic inspection of reinforced concrete buildings
WITH INUSLATION IN
REINFORCED SLAB EDGE
WITHOUT INSULATION IN
REINFORCED SLAB EDGE
MECHANISED SURFACE (DOVETAIL)
SMOOTH SURFACE
TECHNICAL INFORMATION
| Thermal conductivity (λ) : | 0,032 W/mK |
| Thickness: | Smooth surface ≥ 10 mm Mechanised surface ≥ 30 mm |
| Standard length: | 2000 mm |
| Standard width: | 250, 300 and 350 mm |
| Contact us for other measurements | |
| Cut: |  |
| Superficie: |   |
| For more information, contact us | |
